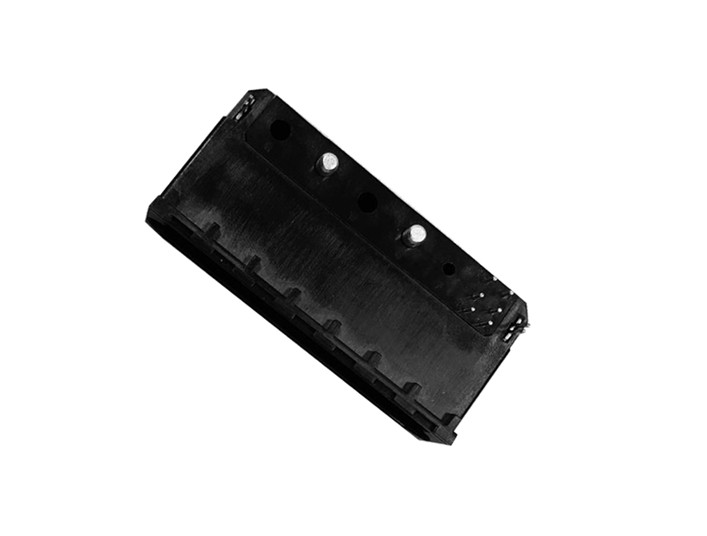

产品名称:DJL11 module connector

产品型号:JGT-DJL11-11G8TJW6
产品详情:

DJL11 module connector

Power contact: 1-6 pins (according to demand, some holes can not be installed)

7-11 needle (according to the requirement, some holes may not be installed)

Rated current: 1-6 pin: 5A

7-11 needle :200A

Contact resistance: 1.0(1.6)mΩ

Resistant  Press   Value: 1-6 Pins: 1000V

7-11 pin: 5000V

Termination Style: Pin: Buckle Pin B. Jack: Crimp Type Y, Plate Type B, Solder Type H

Surface treatment: surface silver plating, nickel plating on the bottom

Material: Pin, jack jacket Brass or copper alloy

Crown spring bronze

Insulation resistance: ≥1000MΩ

Mechanical life: 1000 times

Housing Material: PBT G30UL94V-0 Black
